964263-2
Manufacturer:
TE Connectivity
Mfr.Part #:
964263-2
Datasheet:
Description:

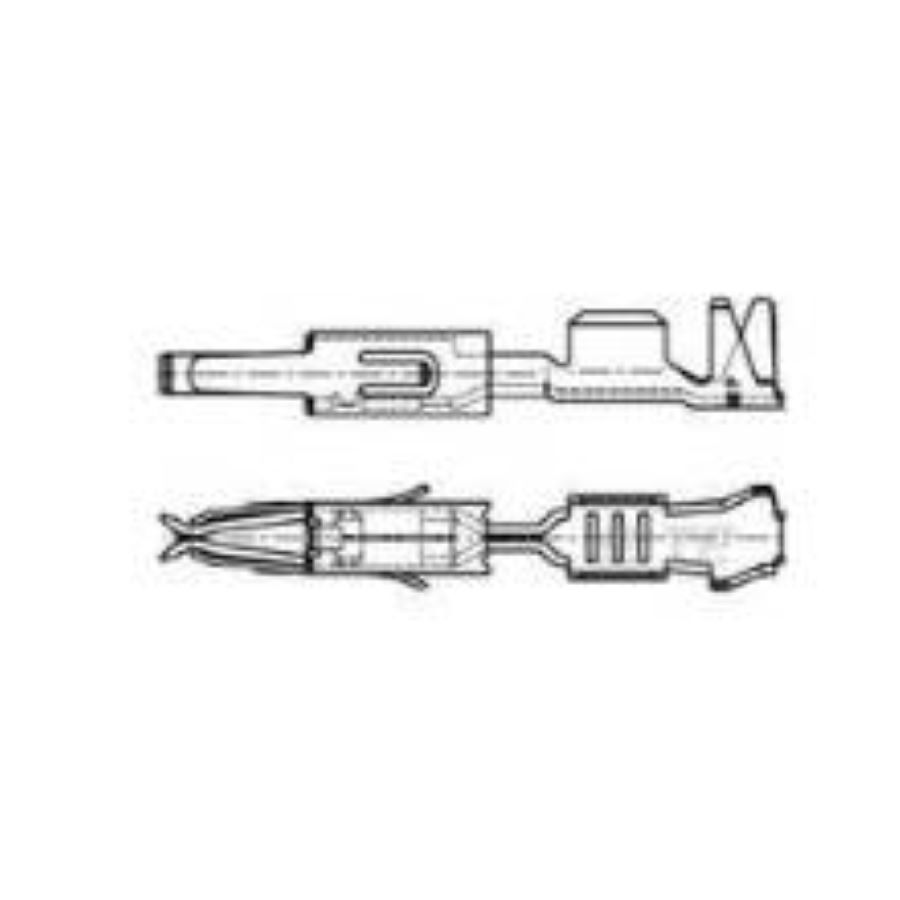

Automotive Connectors Cable Accessory Type:Timer Contact Receptacle 20 AWG to 17 AWG
| Parameter | Value |
|---|---|
| Length | 19 mm |
| Termination | Crimp |
| Max Operating Temperature | 248 °C |
| Min Operating Temperature | -40 °C |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Approvals | IEC, VDE |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, PCB, Receptacle, Signal, Socket |
| Wire/Cable Gauge | 17 AWG |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 17 AWG |
| Insulation Diameter | 2.1082 mm |
| Mating Tab Width | 1.6002 mm |
| Tab Thickness | 600 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Current Rating | 10 A |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 20 AWG to 17 AWG |
| Accessory Type | Timer Contact |
Stock: 3708
Distributors
pcbx
pcbxUnit Price$0.61652
Ext.Price$0.61652
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61652 | $0.61652 |
| 10 | $0.30826 | $3.08260 |
| 50 | $0.23712 | $11.85600 |
| 100 | $0.18240 | $18.24000 |
| 500 | $0.14031 | $70.15500 |
| 1000 | $0.10793 | $107.93000 |
| 3000 | $0.08302 | $249.06000 |
| 5000 | $0.06386 | $319.30000 |
| 10000 | $0.05761 | $576.10000 |
| 30000 | $0.05198 | $1559.40000 |
